Multi-functional Clear Span Arc Roof Tent

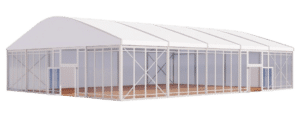

The Arcum tent presents an optimized tent structure system featuring a contemporary curved roof design. This architectural marvel provides an exceptional, upscale, and visually striking aesthetic, making it an elegant and distinctive tenting solution for a wide spectrum of applications, including festivals, sports stadiums, trade shows, exhibitions, parties, events, press conferences, warehousing, logistics, and more.
Our Arcum tent features an aluminum profile structure with steel connections. It’s available in single and double-decker models, with options for glass walls, solid walls, and glass doors on both levels. We offer various widths, and customization is possible. With interior and exterior balconies, staircases, and other enhancements available, the Arcum structure tent creates a customized, functional, and versatile event space.
Gallery

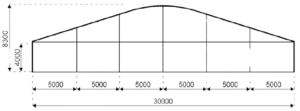

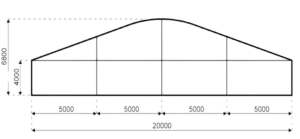

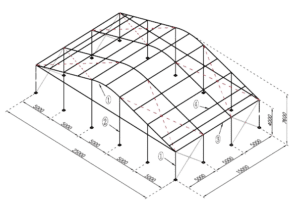

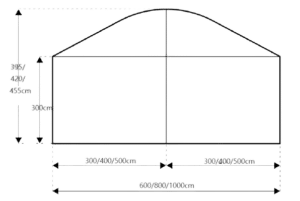

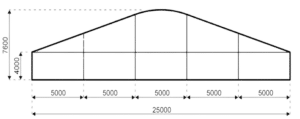

Models & Sizes (Span width from 3M to 50M)
| Span Width | Eave Height | Ridge Height | Bay Distance | Main profile | Wind Load |
|---|---|---|---|---|---|
| 3m | 3m | 3.23m | 3m | 94x48x3mm | 80km/h |
| 6m | 3m | 3.95m | 3m | 94x48x3mm | 80km/h |
| 8m | 3m | 4.20m | 3m | 94x48x3mm | 80km/h |
| 10m | 3m | 4.55m | 3m | 94x48x3mm | 80km/h |
| 15m | 4m | 5.8m | 5m | 220x100x4mm | 100km/h |
| 20m | 4m | 6.53m | 5m | 220x100x4mm | 100km/h |
| 25m | 4m | 7.15m | 5m | 220x100x4mm | 100km/h |
| 30m | 4m | 7.85m | 5m | 300x120x6mm | 100km/h |
| 40m | 4m | 9.6m | 5m | 300x120x6mm | 100km/h |
Features, Accessories and Cutom Design
| Frame material | Hard pressed aluminum alloy T6061/T6 |
|---|---|
| Fabric cover | double PVC-coated polyester textile; 100% waterproof;UV resistant, tear-resistant, self-cleaning ability, etc. |
| Roof cover | 850g/sqm white PVC Fabric |
| Sidewall cover | 650g/sqm white PVC Fabric |
| Fabric color option | White, yellow, transparent and customized |
| Connector | Strong hot-dip galvanized steel. |
| Allowed temperature condition | -30 degree Celsius +70 degree Celsius |
| Wind load | 80-100km/h |
| Snow load | 75kg/sqm (snow can’t stay if use big degree roof pitch design) |
| Other features | Easy to assemble and disassemble No pole inside, 100% available interior space |
- PVC window sidewalls
- Anchoring
- Rain Gutter
- Lining and curtain
- Glass door units
- Hard walling system
- Glass walling system
- Transparent PVC cover and sidewall
- Flooring system
- Weight plate
A comprehensive range of additional accessories is at your disposal. Should you require further details or assistance, please do not hesitate to get in touch with us.
