TFS Structures

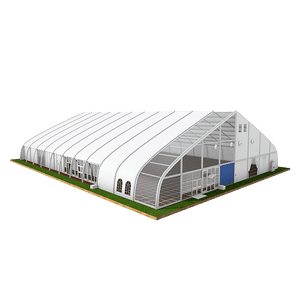

The TFS Tent represents an innovative modular structural solution that excels in ease of installation, disassembly, mobility, and adaptability for constructing both temporary and permanent buildings.
Designed with a clear-span concept, this tent maximizes the utilization of interior space, achieving a remarkable 100% usable area. The incorporation of curved roof beams endows the tent with exceptional resilience, enabling it to withstand substantial snow, wind, and rain loads, including wind speeds of up to 120 KM/h and snow loads of 0.4KN/M2.

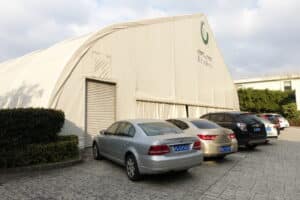

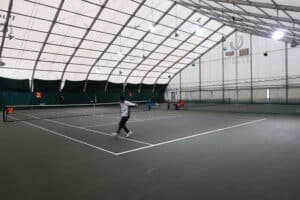

Gallery
Models & Sizes (Span width from 3M to 50M)
| Span Width | Eave Height | Ridge Height | Bay Distance | Main Profile | Wind Load |
|---|---|---|---|---|---|
| 10m | 4m | 6.83m | 5m | 220x100x4mm | 120km/h |
| 15m | 4m | 8.05m | 5m | 220x100x4mm | 120km/h |
| 20m | 4m | 8.8m | 5m | 220x100x4mm | 120km/h |
| 25m | 4m | 9.8m | 5m | 300x120x6mm | 120km/h |
| 30m | 4m | 11.2m | 5m | 300x120x6mm | 120km/h |
| 40m | 4m | 13.53m | 5m | 300x120x6mm | 120km/h |
Features, Accessories and Cutom Design
| Frame material | Hard pressed aluminum alloy T6061/T6 |
|---|---|
| Fabric cover | double PVC-coated polyester textile; 100% waterproof;UV resistant, tear-resistant, self-cleaning ability, etc. |
| Roof cover | 850g/sqm white PVC Fabric |
| Sidewall cover | 650g/sqm white PVC Fabric |
| Fabric color option | White, yellow, transparent and customized |
| Connector | Strong hot-dip galvanized steel. |
| Allowed temperature condition | -30 degree Celsius +70 degree Celsius |
| Wind load | 80-100km/h |
| Snow load | 75kg/sqm (snow can’t stay if use big degree roof pitch design) |
| Other features | Easy to assemble and disassemble No pole inside, 100% available interior space |
- PVC window sidewalls
- Anchoring
- Rain Gutter
- Lining and curtain
- Glass door units
- Hard walling system
- Glass walling system
- Transparent PVC cover and sidewall
- Flooring system
- Weight plate
A comprehensive range of additional accessories is at your disposal. Should you require further details or assistance, please do not hesitate to get in touch with us.
