Most Popular Clear Span Tent-A Frame
The A-Frame tent, also recognized as the A-Shape tent, represents our standard and highly preferred design in response to client demand within the industrial and commercial clear span tent sector.

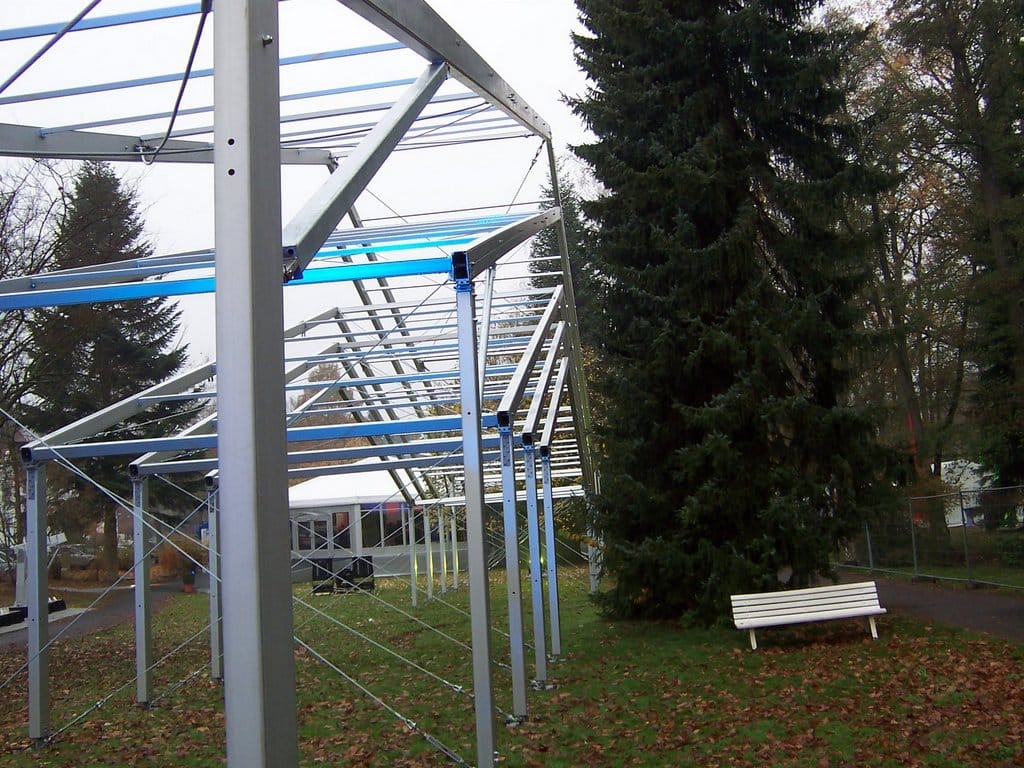

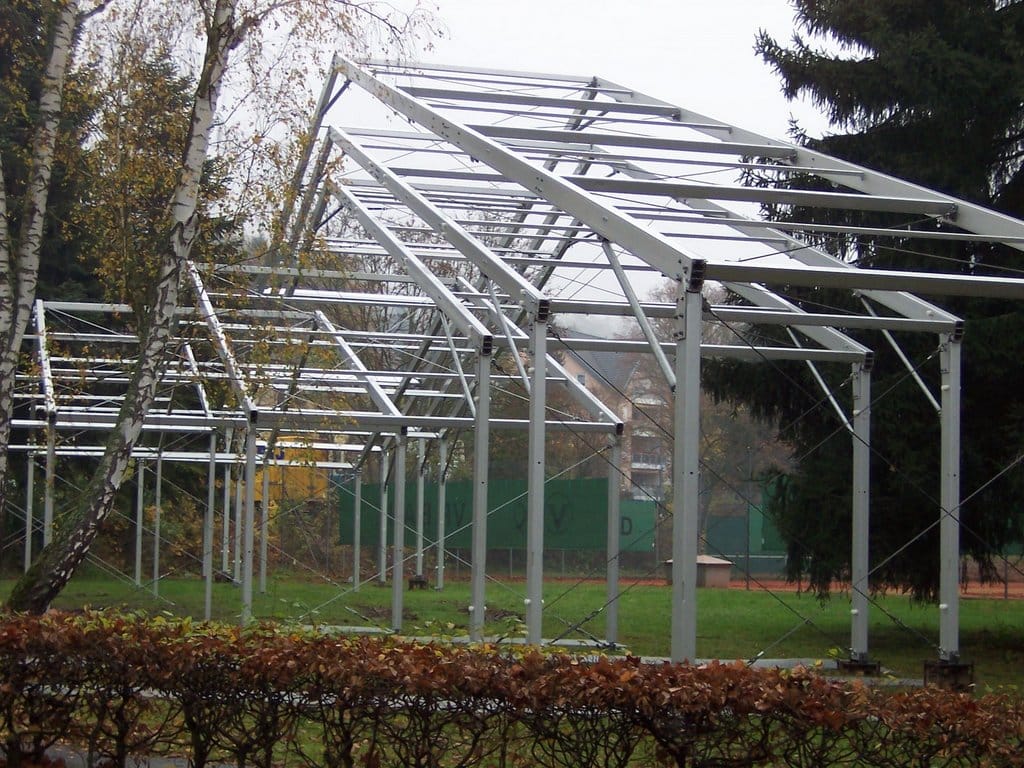

These A-Frame tents feature robust aluminum alloy frames, characterized by their structural integrity, ease of assembly and disassembly, and logistical efficiency for storage and transportation. Every tent within our inventory is meticulously crafted and quality-controlled by our proficient manufacturing department to meet rigorous industry standards.

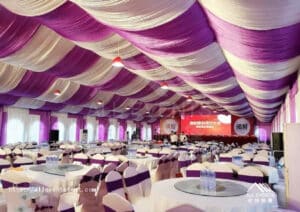

The A-Frame tent stands as the ideal solution for large-scale events, including weddings, parties, corporate gatherings, trade shows, fashion exhibitions, summer galas, and a plethora of other occasions that demand ample space with minimal obstructions. Its meticulously engineered design ensures a spacious interior, minimizing the presence of internal support poles by relocating them to the tent’s exterior.
Our A-Frame tents offer an impressive span width range, extending from 3 meters to a substantial 60 meters (including width like 3m,4m,5m,6m,8m,10m,12m,15m, 20m, 25m, 30m, 40m, 45m, 50m, and 60m). The length of these tents is highly versatile, with the option to customize it in modular increments of 3 meters or 5 meters, without any limitations.
These tents are ingeniously designed to eliminate the need for interior support poles, allowing you to maximize the utilization of space within. Among the most sought-after dimensions are 6x12m, 9x15m, 10x20m, 12x30m, 15x40m, 20x30m, 20x50m, 25x60m, 30x60m, 30x100m, 40x100m, 50x100m, and more.
This style of clear span tent finds extensive applications as a premier choice for various events, including weddings, corporate gatherings, warehousing solutions, exhibitions, parties, and numerous other occasions requiring a versatile and spacious enclosure.

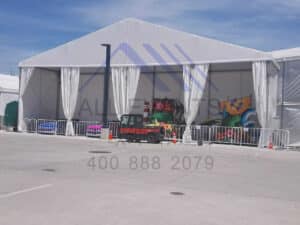

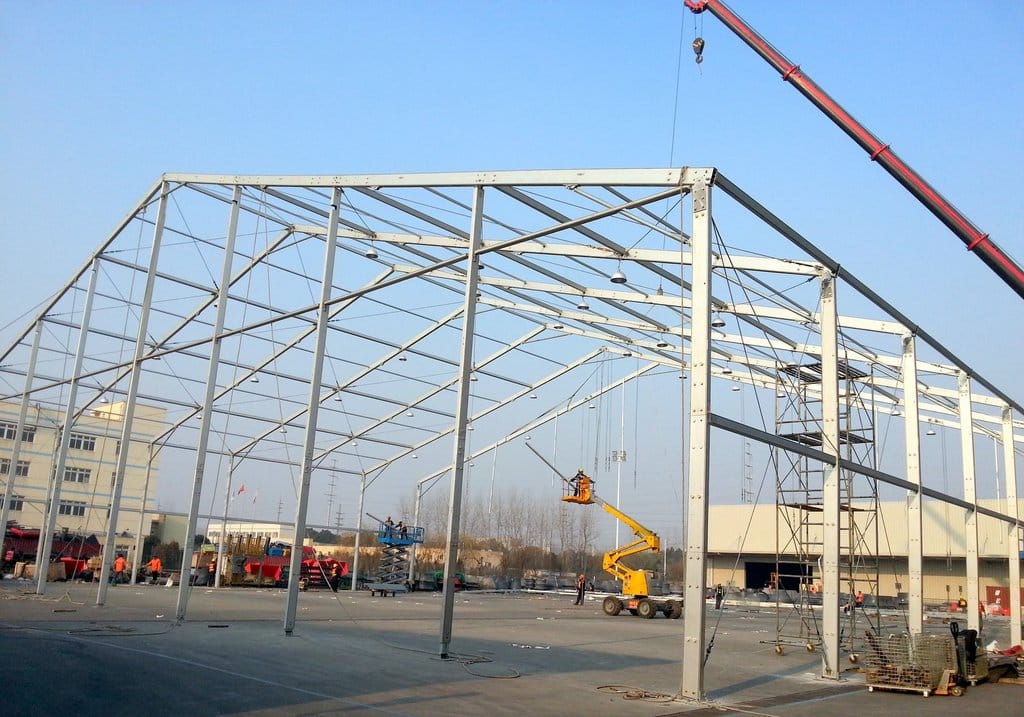

Gallery

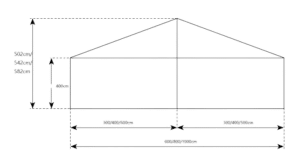

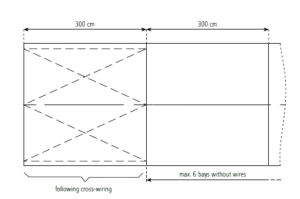

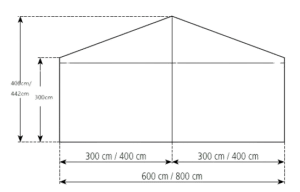

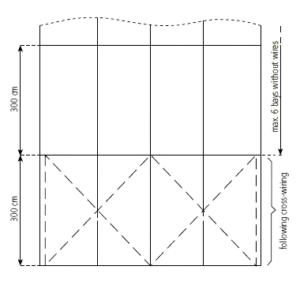

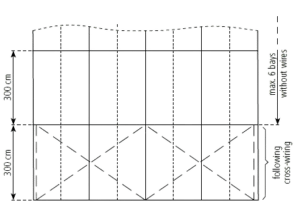

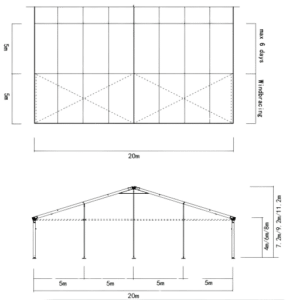

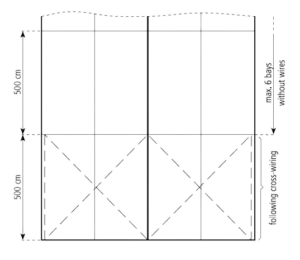

Models & Sizes (Span width from 3M to 60M)

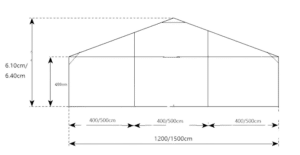

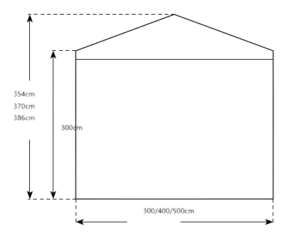

| Span Width | Eave Height | Ridge Height | Bay Distance | Longest Component | Wind Load |
|---|---|---|---|---|---|
| 3m | 3m | 3.56m | 3m | 3.00m | 80km/h |
| 4m | 3m | 3.75m | 3m | 3.00m | 80km/h |
| 5m | 3m | 3.90m | 3m | 3.10m | 80km/h |
| 6m | 3m | 4.02m | 3m | 3.30m | 80km/h |
| 8m | 3m | 4.42m | 3m | 4.40m | 80km/h |
| 10m | 3m | 4.82m | 3m | 5.40m | 80km/h |
| 12m | 3m | 4.87m | 3m | 6.4m | 80km/h |

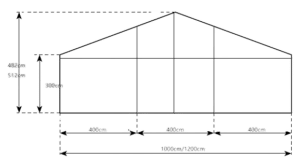

| Span Width | Eave Height | Ridge Height | Bay Distance | Longest Component | Wind Load |
|---|---|---|---|---|---|
| 6m | 4m | 5.02m | 5m | 5.02m | 80km/h |
| 8m | 4m | 5.42m | 5m | 5.4m | 80km/h |
| 10m | 4m | 5.80m | 5m | 5.8m | 80km/h |
| 12m | 4m | 6.12m | 5m | 6.4m | 80km/h |

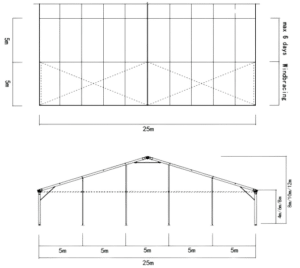

| Span Width | Eave Height | Ridge Height | Bay Distance | Longest Component | Wind Load |
|---|---|---|---|---|---|
| 10m | 4m | 5.80m | 5m | 5.80m | 100km/h |
| 11m | 4m | 5.96m | 5m | 6.00m | 100km/h |

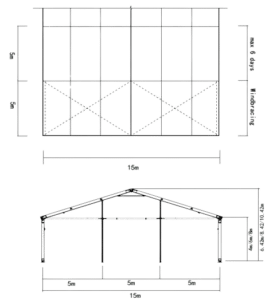

| 15m | 4m | 6.40m | 5m | 8.10m | 100km/h |
| 16m | 4m | 6.55m | 5m | 8.60m | 100km/h |
| 20m | 4m | 7.30m | 5m | 10.70m | 100km/h |
| 25m | 4m | 7.96m | 5m | 10.70m | 100km/h |
| 30m | 4m | 8.95m | 5m | 10.70m | 100km/h |

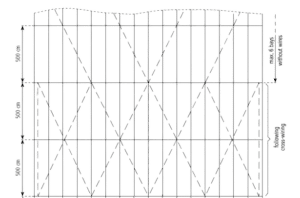

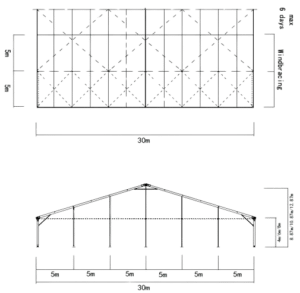

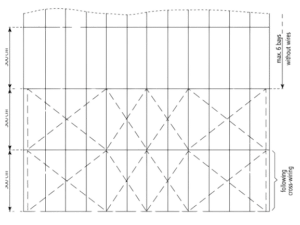

| Span Width | Eave Height | Ridge Height | Bay Distance | Longest Component | Wind Load |
|---|---|---|---|---|---|

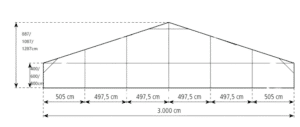

| 30m | 4m/6m | 8.87m/10.87m | 5m | 10.62m | 100km/h |

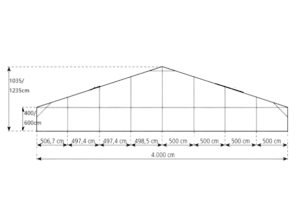

| 40m | 4m/6m | 10.42m/12.42m | 5m | 10.62m | 100km/h |
main profile: 285x125x7mm or 300x120x6mm

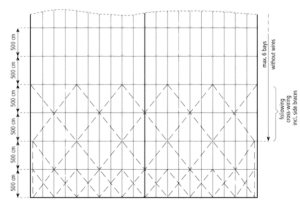

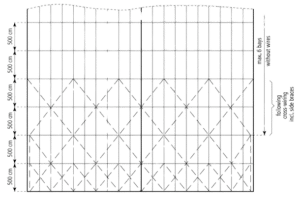

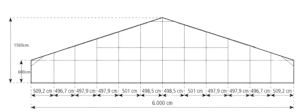

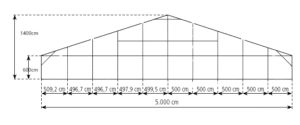

| Span Width | Eave Height | Ridge Height | Bay Distance | Longest Component | Wind Load |
|---|---|---|---|---|---|
| 50m | 6m | 14.12m | 5m | 10.62m | 100km/h |
| 60m | 6m | 15.80m | 5m | 10.62m | 100km/h |
Features, Accessories and Cutom Design
| Frame material | Hard pressed aluminum alloy T6061/T6 |
|---|---|
| Fabric cover | double PVC-coated polyester textile; 100% waterproof;UV resistant, tear-resistant, self-cleaning ability, etc. |
| Roof cover | 850g/sqm white PVC Fabric |
| Sidewall cover | 650g/sqm white PVC Fabric |
| Fabric color option | White, yellow, transparent and customized |
| Connector | Strong hot-dip galvanized steel. |
| Allowed temperature condition | -30 degree Celsius +70 degree Celsius |
| Wind load | 80-100km/h |
| Snow load | 75kg/sqm (snow can’t stay if use big degree roof pitch design) |
| Other features | Easy to assemble and disassemble No pole inside, 100% available interior space |
- French PVC window sidewalls
- Anchoring
- Rain Gutter
- Lining and curtain
- Glass door
- Hard wall
- Glass wall
- Transparent PVC cover and sidewall
- Flooring system
- Weight plate
A comprehensive range of additional accessories is at your disposal. Should you require further details or assistance, please do not hesitate to get in touch with us.
